FRP media vessels
817 through 6079, including the previously missing 2069, 2465, 2472, 3065, 3072, 3672, 4272, 4872 and 6079 sizes.
FRP filter guide →H-TECH water treatment catalogue · Kenya
Industrial RO Plants and Water Treatment Components
Compare verified capacity, vessel, media, membrane, pump, UV and softener variants. Every final system is selected around the water analysis, required output, site utilities and operating duty.
- Real product photography
- Model-level specifications
- Prices never reduced during this catalog update
Find the right equipment family
Water treatment catalog by application
Use the family links for a fast technical overview, then open a product card for the complete verified fields.

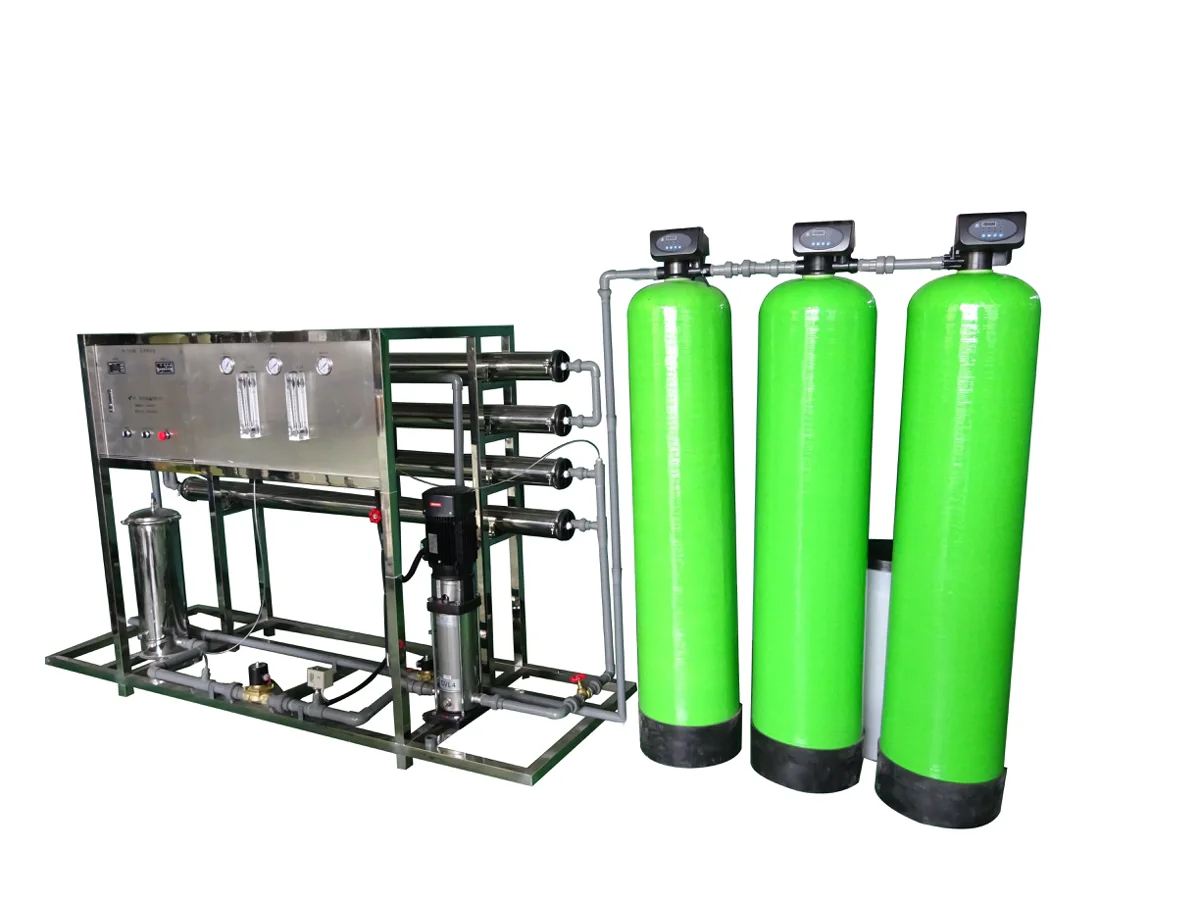

Reverse osmosis plants
H-TECH industrial RO systems from 250 to 10,000 LPH
The range uses 4040 membrane elements through 3,000 LPH and 8040 elements from 4,000 LPH. Pretreatment media quantities and automatic-valve models change with output.
Important: 2,000 LPH has two distinct configurations. Herritech will select the standard or high-media version after reviewing raw-water quality.
| Output | Pretreatment vessel | Membrane array | Configuration note |
|---|---|---|---|
| 250 LPH | Ø250 × 1400 mm | 1 × 4040 | Compact commercial |
| 500 LPH | Ø250 × 1400 mm | 2 × 4040 | Commercial duty |
| 1,000 LPH | Ø350 × 1650 mm | 4 × 4040 | TMF67P1 valve |
| 2,000 LPH | Ø400 × 1650 or Ø500 × 1750 mm | 8 × 4040 | Two pretreatment options |
| 3,000 LPH | Ø500 × 1750 mm | 12 × 4040 | TMF75A1 valve |
| 4,000–6,000 LPH | Ø600 × 1850 to Ø900 × 1850 mm | 4–6 × 8040 | Industrial array |
| 8,000–10,000 LPH | Ø900 × 2100 to Ø1000 × 2100 mm | 8–10 × 8040 | Antiscalant/combination-valve design |

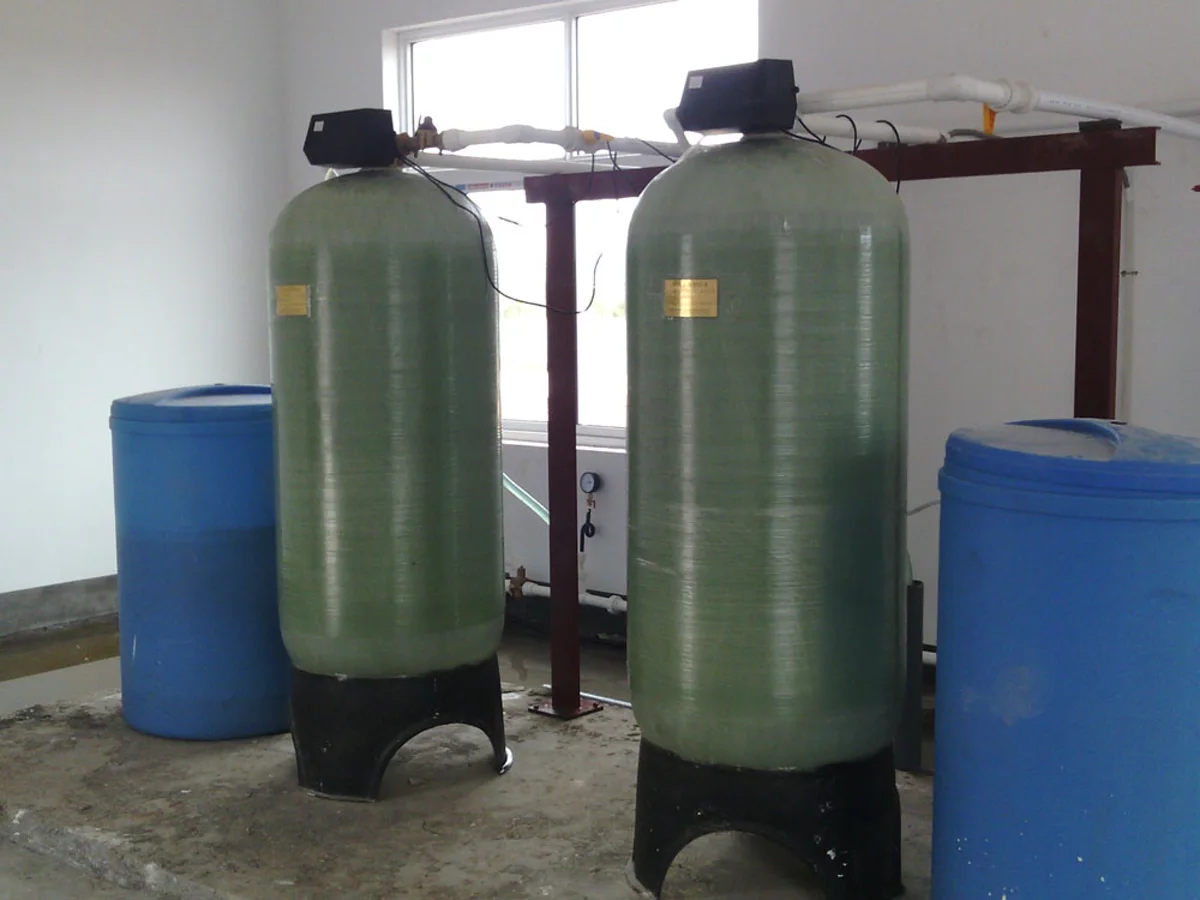

Hard-water treatment
Automatic water softeners in twelve capacity and vessel combinations
The corrected range runs from 1 TPH with an 0844 vessel to 25 TPH with a 4894 vessel. The 15 TPH model uses a 3672 vessel—not 3072—and the 20 TPH listing is correctly spaced as 4087.
- 60–2,000 litre brine tanks by capacity
- Automatic time- or flow-controlled regeneration
- Resin quantity, connection size and salt use confirmed on final duty
Pump selection
RO booster and raw-water pump duties
Fifteen verified variants cover 2–6 m³/h, 15–115 m head and 0.37–3 kW. Select by the real operating point, not motor power alone.

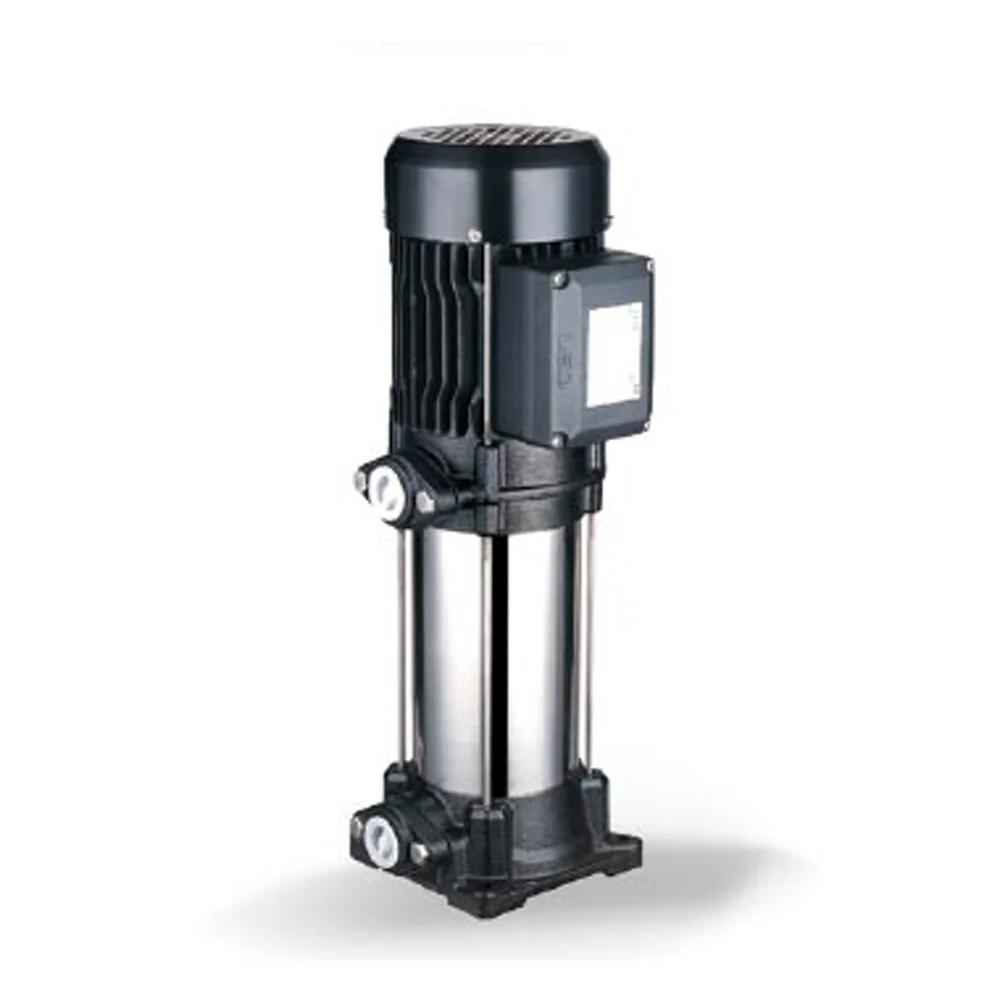

- EVP2 and EVP4 vertical multistage RO booster range
- XKJ and EDH raw-water booster range
- 220 V single-phase or 380 V three-phase supply by model

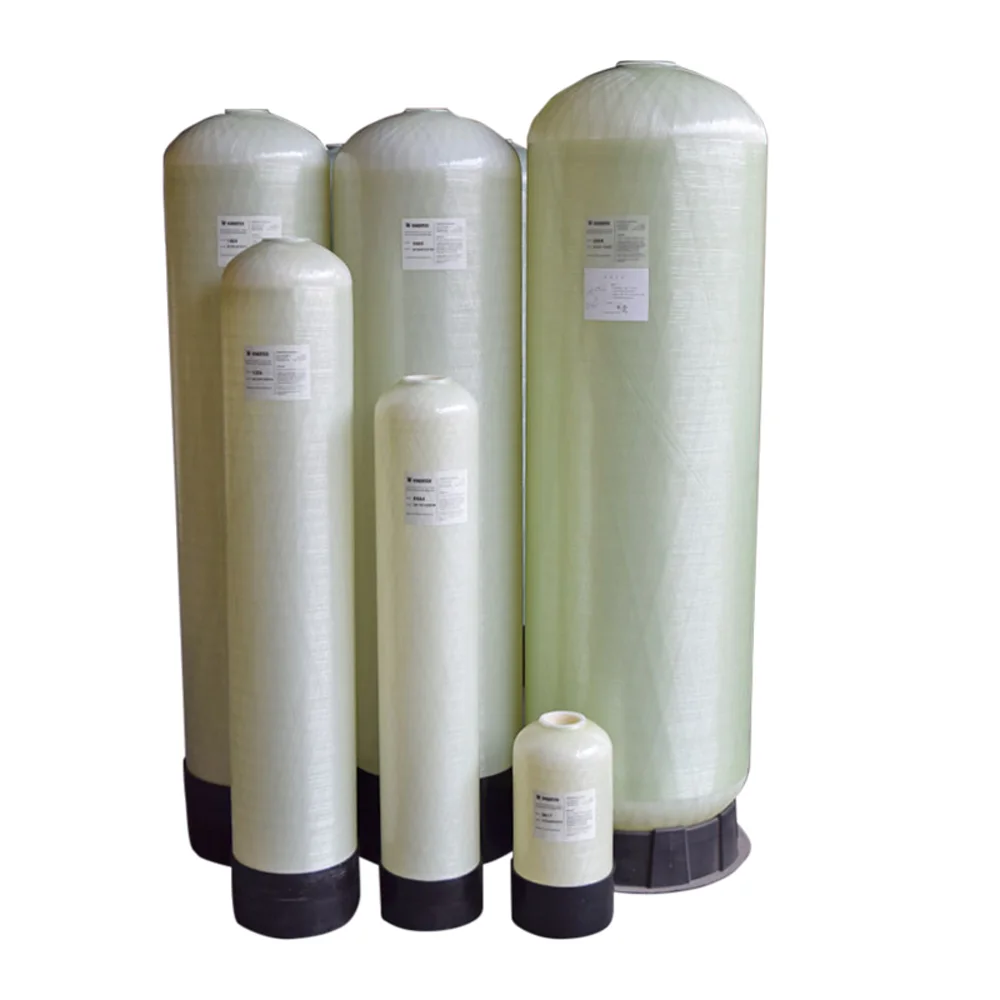

Pressure vessels and media filters
FRP and SS304 vessels by exact size
The new catalog records 24 FRP models and 13 stainless-steel tank dimensions, with media, valve, port and design-pressure fields held for the final technical schedule.

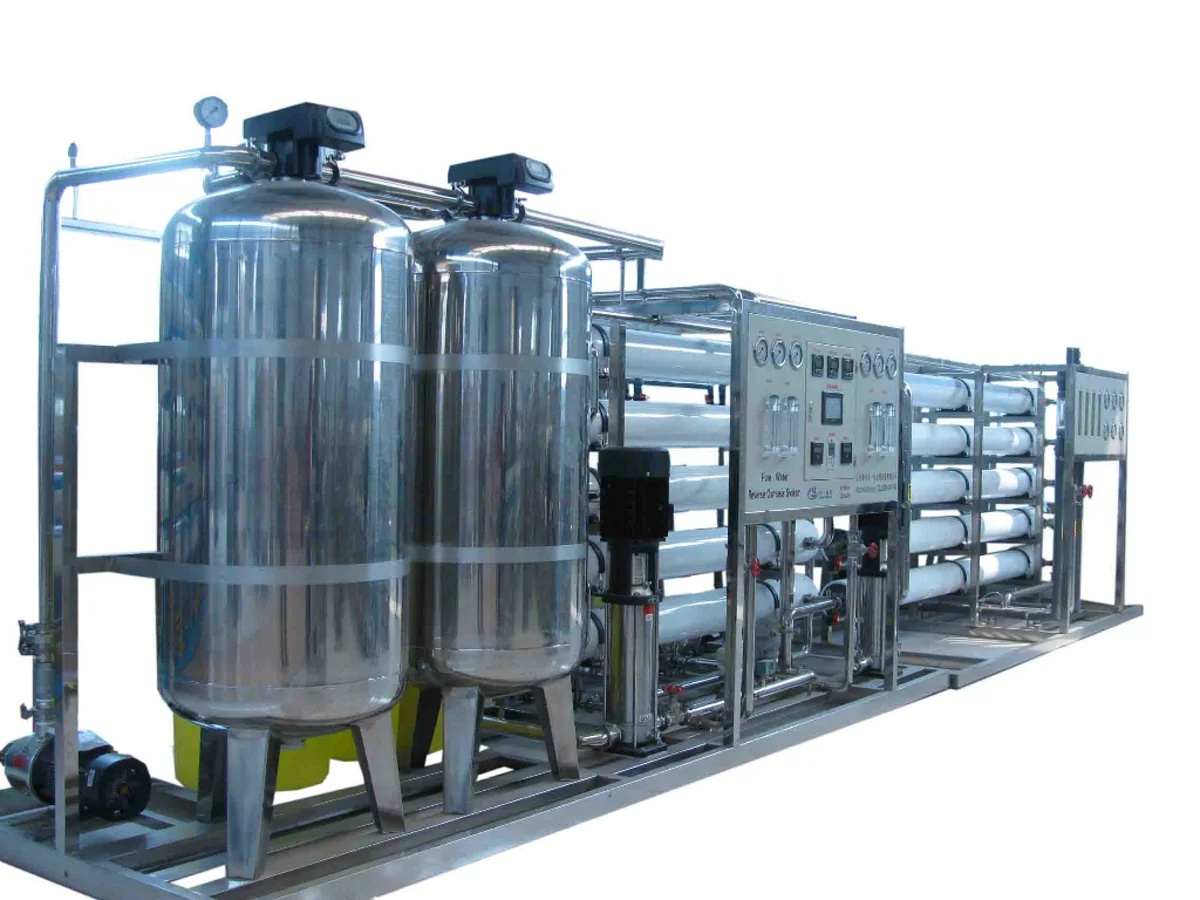

SS304 filter tanks
Ø250 × 1400 through Ø1200 × 2400 mm for sand, carbon, resin or project-specific media.
Request vessel schedule →

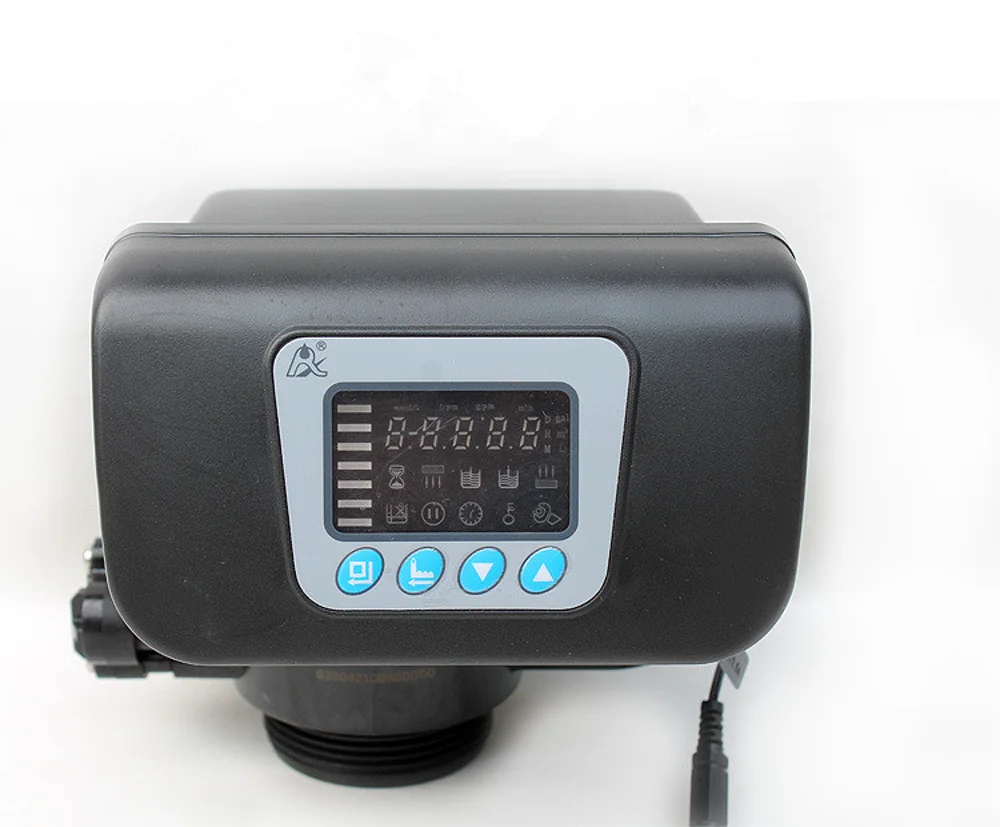

Backwash and regeneration control
Automatic and manual filter and softener valves
Choose by duty, service flow, vessel opening, mounting, regeneration direction and whether time or metered control is required.
- 2–5 m³/h compact 2.5-inch-base models
- 8–20 m³/h top- and side-mount industrial models
- 40 m³/h flow-controlled side-mount option with booster-pump duty
Disinfection and oxidation
SS304 UV sterilizers and ozone generators
Real series photography replaces the generated UV illustrations. Every UV card now records flow, lamp power, length, tube diameter and connection.

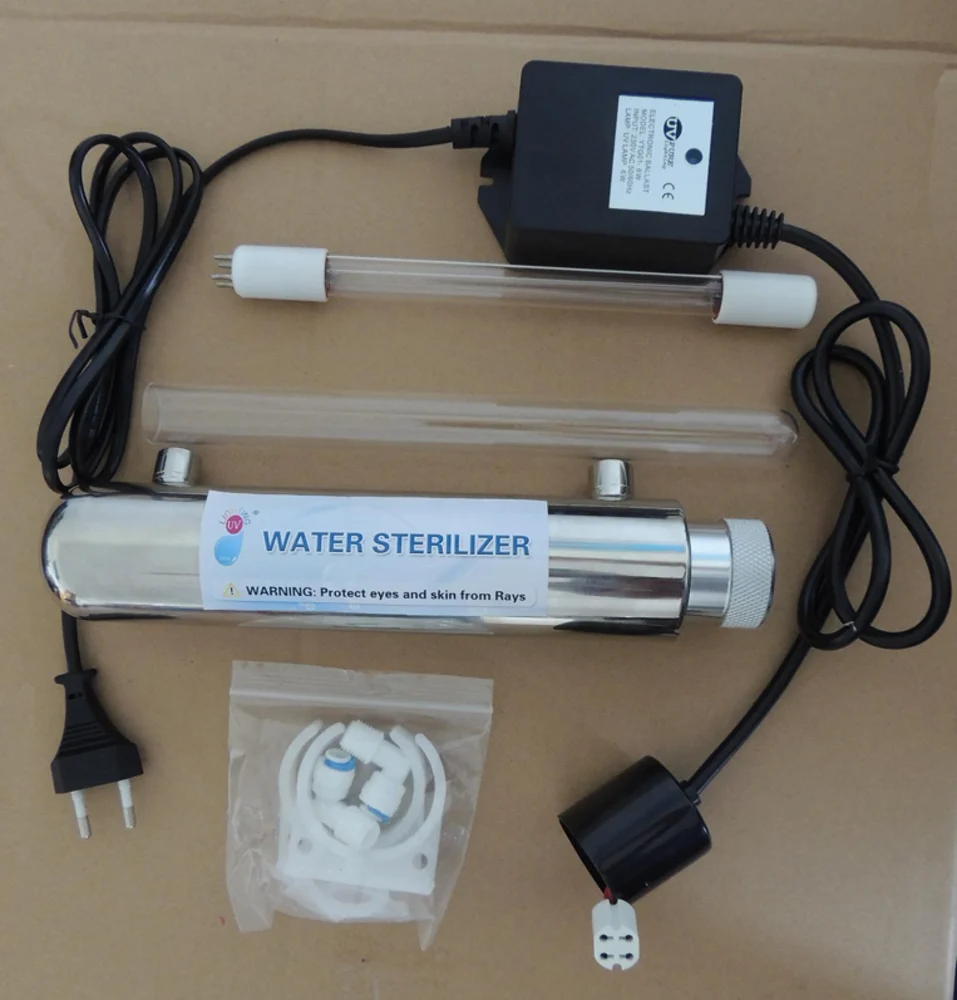

UV sterilizers: 0.4–65 GPM
Ten models from 6 W to 220 W, with 0.1–15 m³/h nominal treatment references and DN50 maximum listed connection.
Compare UV models →

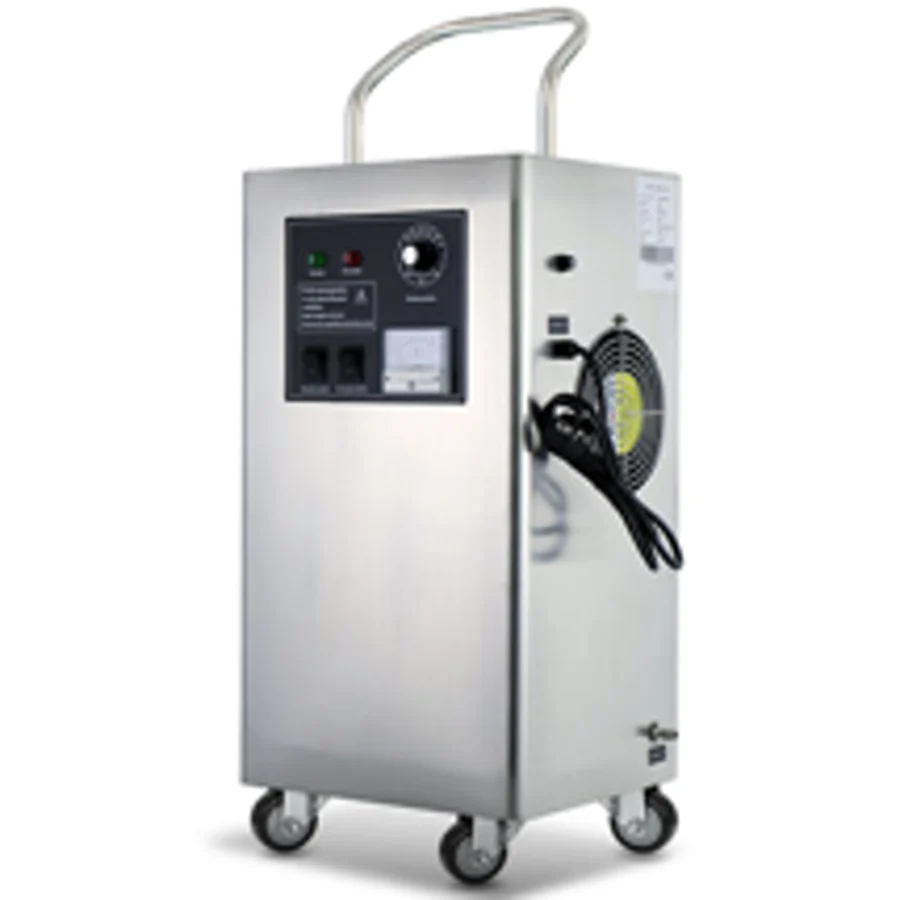

Ozone generators: 3–30 g/h
Six SS304 variants from 80 W to 380 W. Final systems require ozone-demand, contact-time, ventilation and off-gas safety design.
Design ozone treatment →RO consumables and pressure housings
Membranes and housings selected by exact compatibility

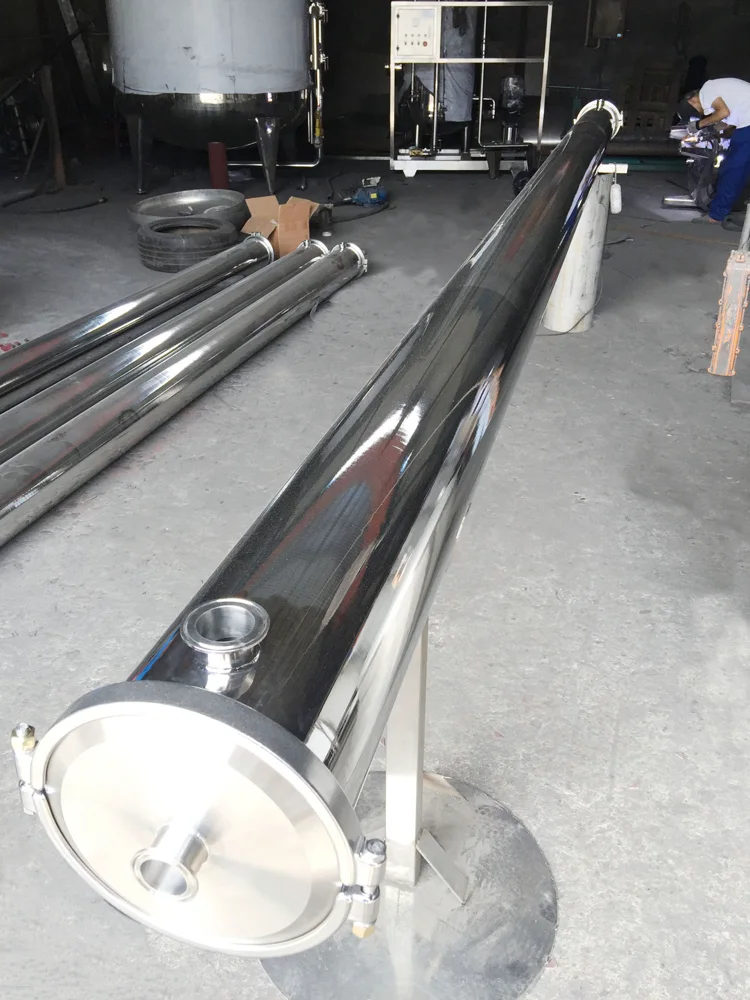

H-TECH-supplied membrane records retain the true manufacturer model where compatibility requires it. Housing options cover FRP and SS304, 2.5-, 4- and 8-inch diameters, end or side ports, and one to seven elements.
- Domestic 50–400 GPD membrane options
- 4040 elements around 2,400 GPD and 99.5% listed stable rejection
- 8040 elements up to 10,500 GPD in the verified range
- FRP 4040 housings listed to 300 psi; confirm every model
Prefiltration and monitoring
Cartridges, meters, gauges and dosing accessories

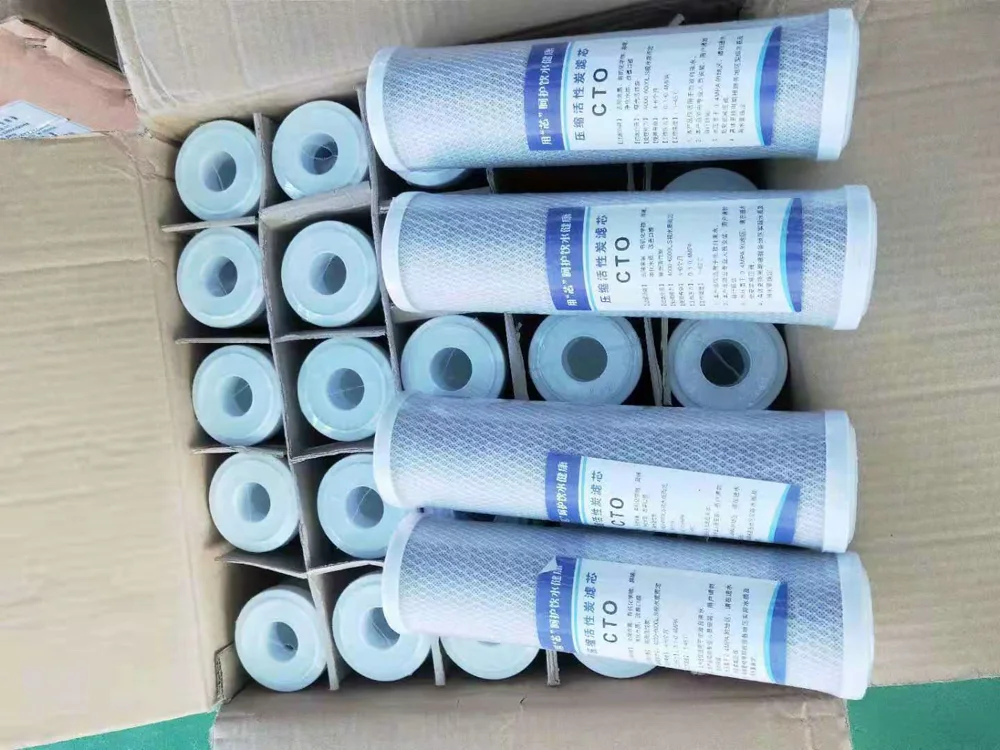

Spun and wound sediment cartridges are recorded at 10, 20, 30 and 40 inches with 1, 5 and 10 micron options. Carbon block, GAC, T33, flow, pressure, conductivity and dosing variants are now grouped by compatibility.
Confirm housing diameter, pressure, temperature, chemical compatibility and food-contact requirements before supply.
Model-level H-TECH catalog
Compare water-treatment products and technical fields
Open “Technical specifications” on each card for capacity, vessel, membrane, valve, power, flow or connection details.
Loading H-TECH water equipment…
Buyer questions
Before requesting a water-treatment quotation
How is RO capacity selected?
From daily demand, operating hours, source-water analysis, recovery, storage, peak flow and future growth—not from LPH alone.
Why is water testing required?
Salinity, hardness, iron, solids and other results determine pretreatment, membrane duty, dosing and cleaning requirements.
Are new variant prices final?
No. Unverified variants remain quote-only until current landed cost and the complete technical and delivery scope are confirmed.
Does Herritech install?
Request equipment, plumbing, electrical, installation, commissioning, operator training and maintenance as one site-fit scope.
Get the correct H-TECH configuration
Request a site-fit water-treatment quotation
Share the water analysis, required daily output, operating hours, county, power supply, storage and intended water use.
